An Inside Look at the Galaxy Z Fold6

samsung-mobile-galaxy-z-fold6-a-look-inside-galaxy-unpacked-2024

The as big screen of the Galaxy Z Fold family of devices unfolds and folds thanks to the innovative technology included in its flexible design factor.

The Galaxy Z Fold6, which debuted at Galaxy Unpacked 2024, has captured consumers’ attention with its elegant form and innovative features that highlight the limitless possibilities of folding phones. The newest Z Fold series device is just as robust as before, but it has a smaller, lighter body. It is outfitted with Galaxy AI, tailored for usage with foldables to increase user productivity.

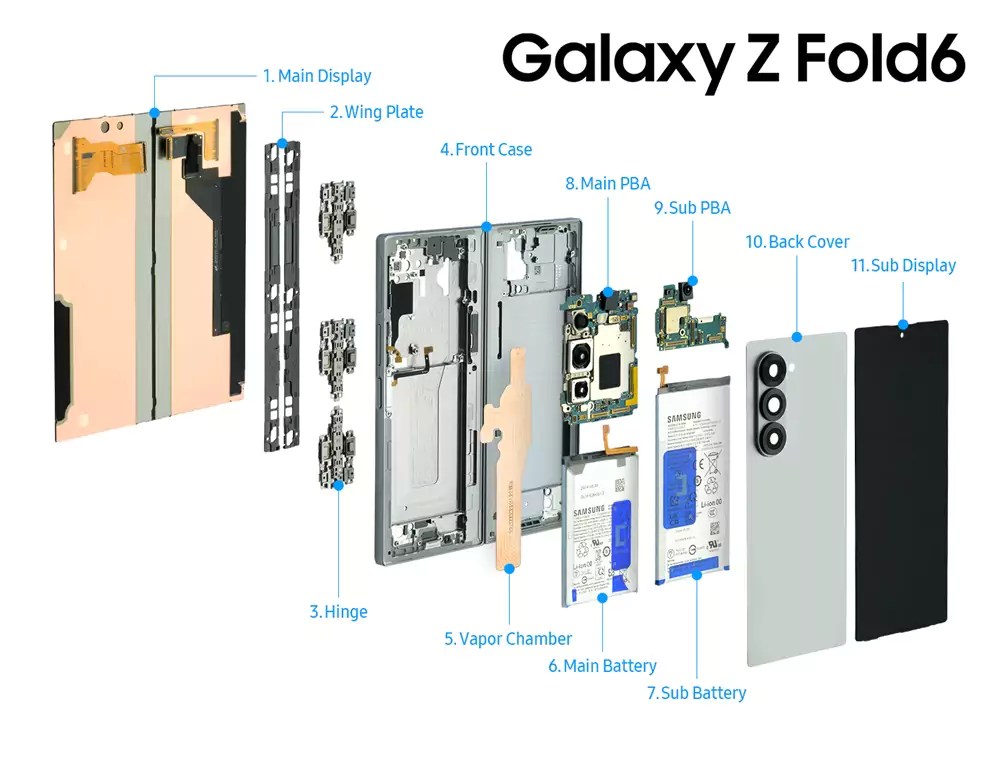

What are the industry secrets for the advancements included in the Galaxy Z Fold6? Samsung Newsroom investigated inside to learn more.

1. Main Display

The foldable’s main display is easy to see, even in strong daylight, thanks to its max brightness of 2,600 nits. By adjusting the colors and contrast of images under various lighting conditions, Vision Booster improves the visual experience even more.

2. Wing Plate

The Galaxy Z Fold6 benefits from the wing plate.  Gently fold and unfurl. The wing plate moves between the hinge and the display to align the inside and shield it from any mechanical harm. The wing plate is comprised of a unique material that exerts strong force despite its extraordinary thinness.

3. Hinge

The phone is folded and unfolded using the hinge as the main axis. To make foldable as thin as feasible without compromising hinge performance and stability, innovative hinge technology is crucial since slimmer devices require narrower hinge spaces. The hinge of the Galaxy Z Fold6 is redesigned and stronger, making it narrower and smaller than before without sacrificing durability. Samsung was able to produce an incredibly portable phone that is simple to take around at all times because of the redesigned hinge.

4. Front Case

Compared to its predecessor, the casing is lighter and slimmer yet just as sturdy. As the name implies, the casing, which is made of Enhanced Armor Aluminum, safely envelops and shields the foldable’s internal components like armor. Rainy days outside are also safe times to use the Galaxy Z Fold6 according to the case’s IP48 water resistance rating.

5. Vapor Chamber

To keep smartphones from overheating, vapor chambers disperse heat. The better a vapor chamber does at dissipating heat and preserving gadget stability, the bigger it is. The vapor chamber of the Galaxy Z Fold6 from Samsung is around 1.6 times larger than that of the Galaxy Z Fold5 model.

6. Main Battery

Samsung refined the device’s smaller form by adding a thinner main battery. In contrast to a bar-style smartphone, the Galaxy Z Fold6’s primary battery is split into two sections.

7. Sub Battery

Situated on the other side of the primary battery is the sub battery, which was likewise trimmed down to fit the sleek appearance of the Galaxy Z Fold.

8. Main PBA

The printed board assembly (PBA), which houses essential components including the application processor and memory, is the brains of a smartphone. Samsung changed to a single-layer primary PBA from a stacked, multilayer one to achieve the smaller design of the Galaxy Z Fold.

9. Sub PBA

The chips that control the device’s speakers and display are located in the sub-PBA. For the sub PBA, a thin printed circuit board (PCB) was utilized.

10. Back Cover

The Galaxy Z Fold6’s back cover is the product of a meticulous manufacturing process. It not only shields the internal parts but also highlights the stylish appearance of the foldable. The back cover features Corning’s Gorilla Glass Victus 2, which is renowned for its exceptional durability and gives users peace of mind that their phones are well-protected.

11. Sub Display

The Galaxy Z Fold6 has a well-balanced, horizontally larger screen ratio that significantly improves the foldable’s usefulness when compared to its predecessor. The sub-display by itself allows users to comfortably enjoy seeing content even when they fold their smartphone. Users can see their screens well even in bright daylight because of the sub-display’s ability to reach as bright as 2,600 nits, just as the main display.

Source
